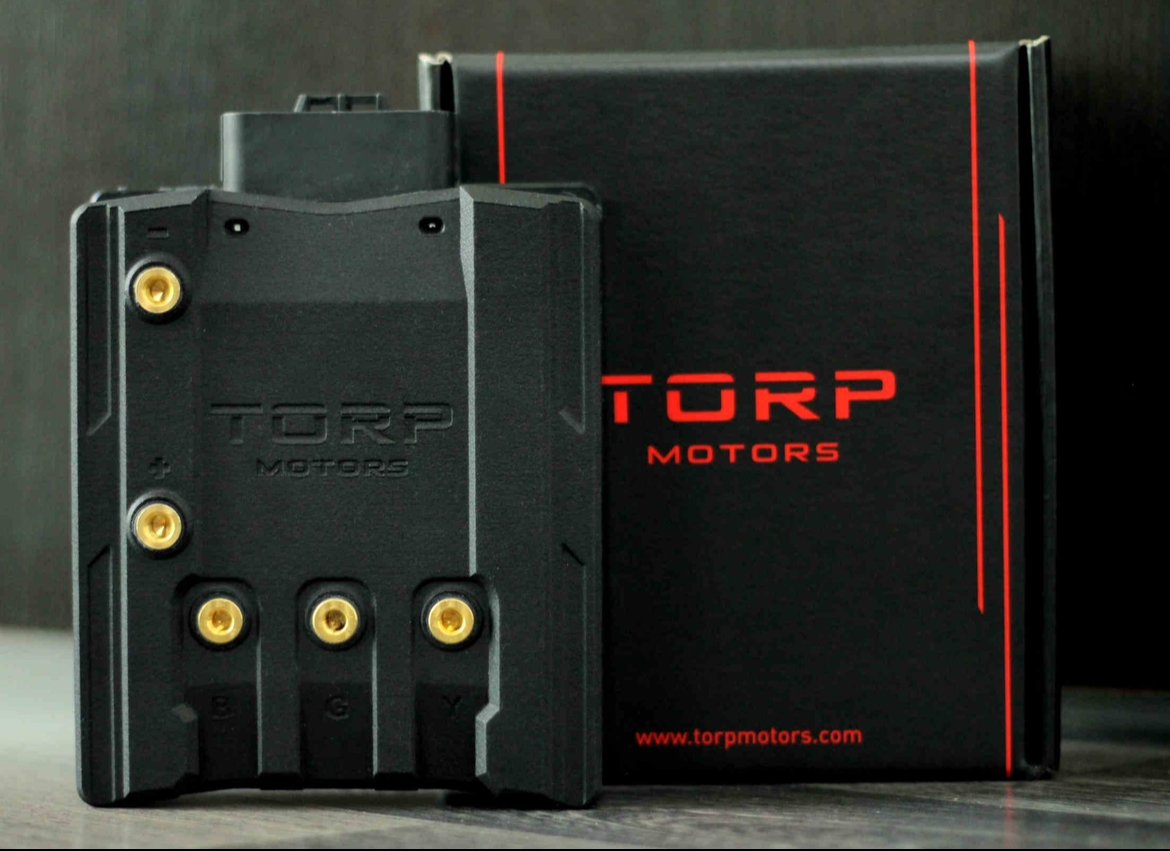

Torp Tc 1000
INCLUDED IN THE PACKAGE:
1x TC1000 Controller
1x wire harness
1x plastic cover
screws and tools needed for installation
4x stickers
1x pack of silicone grease
short instructions
SPECIFICATIONS:
Field-oriented control (FOC)
Supported batteries: up to 80V nominal 22S (92,4 V fully charged)
Max Power: 50kW*
Sensored (HALL Encoder) and sensorless control
Max Battery Current: 700 A
Max phase current: 1000 A*
Max power with the TM25 motor is 25 kW (max 700 PA).
Efficiency up to 99%
Working temperature: from -15 to 75 C°
Bluetooth communication
Pre-calibrated: No additional steps required
Overcurrent, overvoltage, undervoltage and overtemperature protection
Communication with stock BMS
Different regenerative braking and throttle modes
Weight: 1,3kg
Features: Mobile App (IOS & Android), stock SurRon display
Protection class: IP67*
Regular firmware updates
While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors.
Weight: 1.64kg
Compatible for Surron lbx, Rerode, 79bike Talaria & Eride pro
