Vtb beast

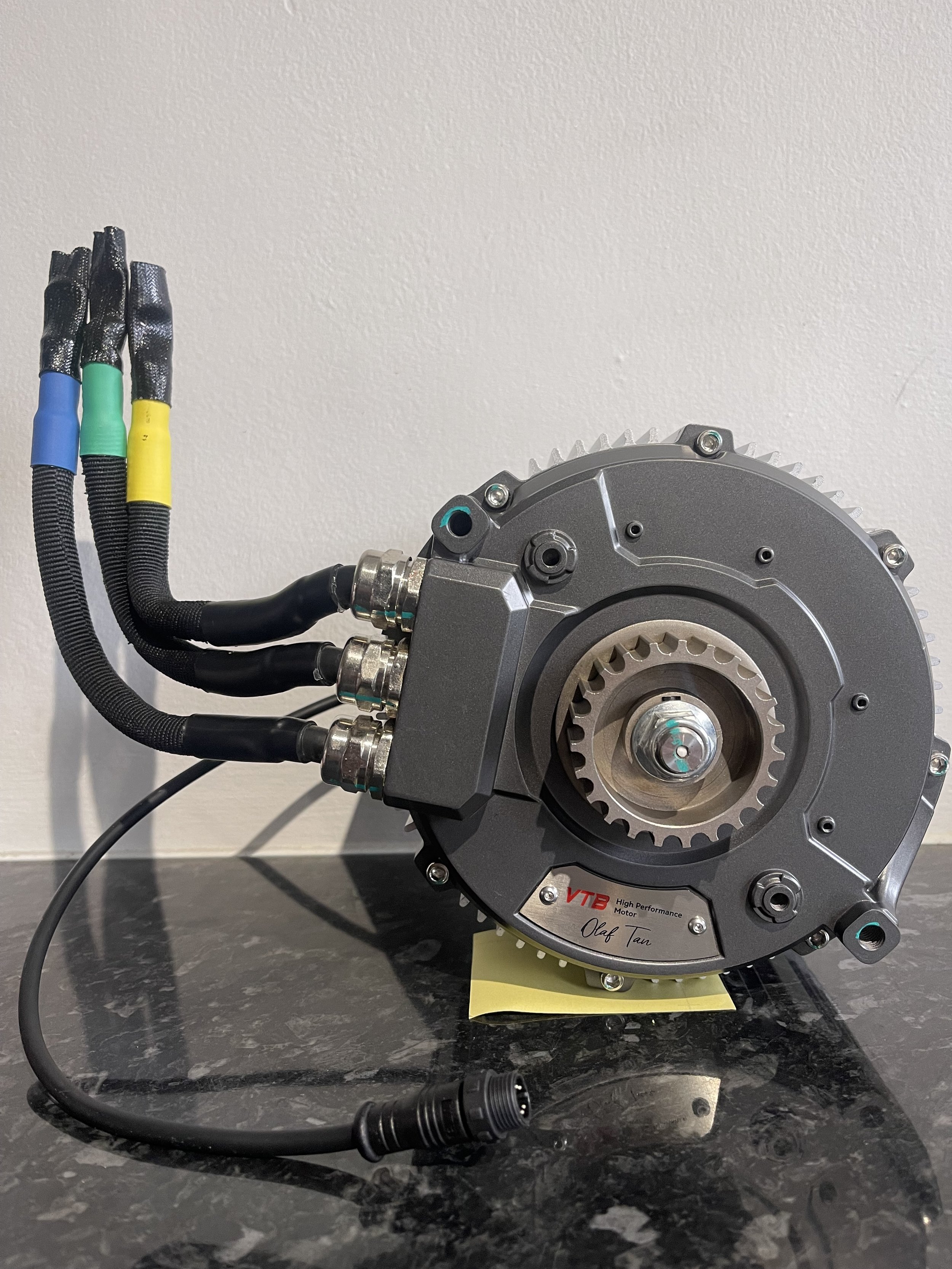

The 2025 Vtb Beast Motor
DIRECT DROP IN REPLACEMENT FOR SUR-RON AND SEGWAY X260.
Max Torque 62N.m
Max Stable Rotor RPM 9500 RPM
Peak Power 28kW
Max Efficiency ≥95%
Working Voltage 48-100V
KV Value 75KV
Motor Temperature
130 deg C start limiting
150 deg C power cut
Max Phase Current 850A
Number of Pole Pairs 5
Phase Wire Terminal SC35-6
Waterproof IP67 Rating
Air Gap Leading 0.5mm rotor air gap empowers its torque to 62N.m
Sensing Method ABZ+PWM encoder for 1024 pulses with 240Hz output frequency
Temperature Sensor NTC 10k thermistors
Shaft High-strength 40CrMoTi Steel Alloy
More Details
Rotor IPM (internal permanent magnet) rotor, most used motor type in electric vehicles, enhances power density
Bearings Top standard sealed bearings with great shock absorption effects and excellent durability
Lamination It uses stator laminations with high magnetic force, restricting eddy-current loss
Stator Winding A leading technique VPI (Vacuum Pressure Impregnation) is applied to stator windings to insulate and protect them
Sensor Terminal VTB beast motor has Nylon M12 circular connection for V9600 controller and 8-pin square sensor terminals to provide higher waterproof level
Specifications
PEAK POWER = 35000W
CONTINOUS POWER = 16500W
High 180 C temp thresholds
IPM syn RM rotor design
MAX TORQUE = 62Nm
MAX EFFICIENCY = 95%
MAX STABLE ROTOR RPM = 13000RPM
MOTOR CONFIGURATION = 5 poles
SENSING METHOD = Both Hall & Encoder
MAX PHASE CURRENT = 900A
CONTINUOS CURRENT = 500A
IP67 WATER RESISTANT
FW01 72V13KWStator Size130*180mmWeight 10.9 kg
Colour Iron Gray
